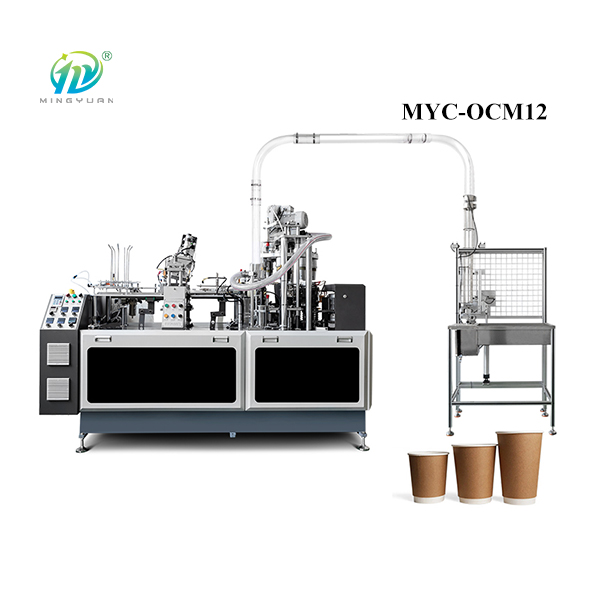

MYC-OCM12 Single Wall Paper Cup Machine

MYC-OCM12 Single Wall Paper Cup Machine

发布时间:2023-10-05 09:47

Country: Russia

Solution:MYC-OCM12

Requirement Size:200ML ,250ML ,330ML and 350ML

The popular sizes of coffee cups in Russia Market are 200ML, 250ML ,350ML and 450ML single wall paper cups.

Client require as below:

1.The client wants to make 4 sizes of the cups in one machine via changing the 3 extra half set mould .

2.And the client also wants the cups with lid/cover for them .

> 查看产品
设计图纸
> 获取解决方案
解决方案:

Solution:

Base on Client require we give client ideas:

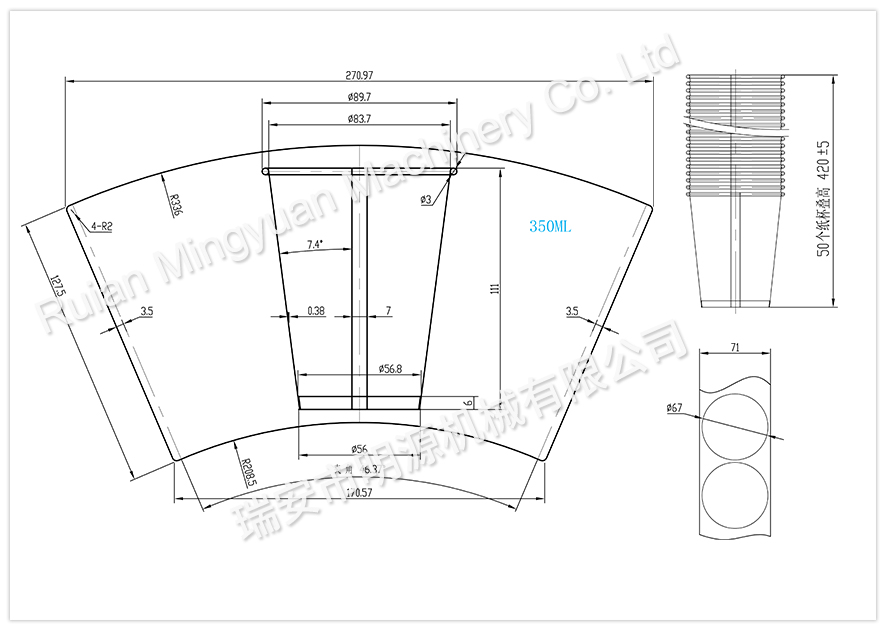

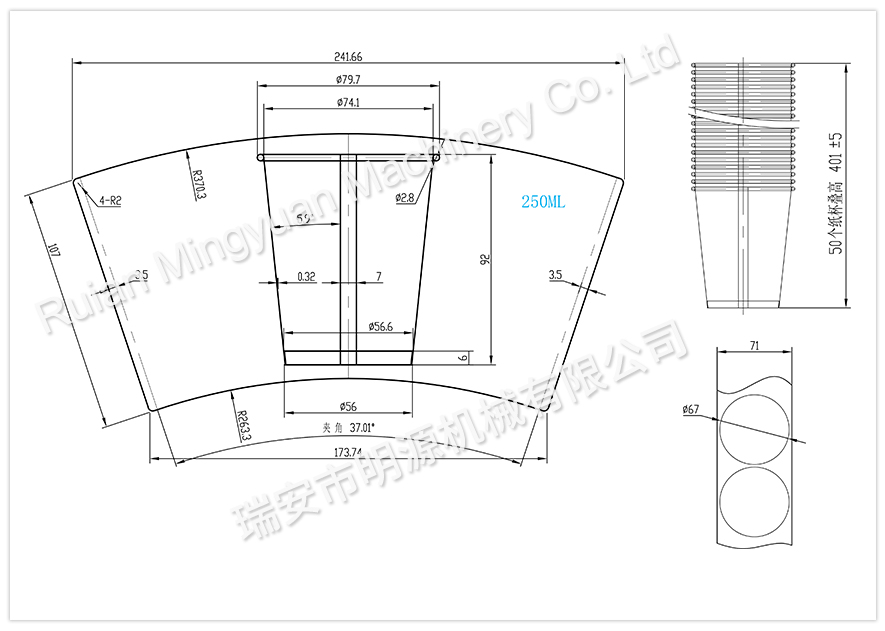

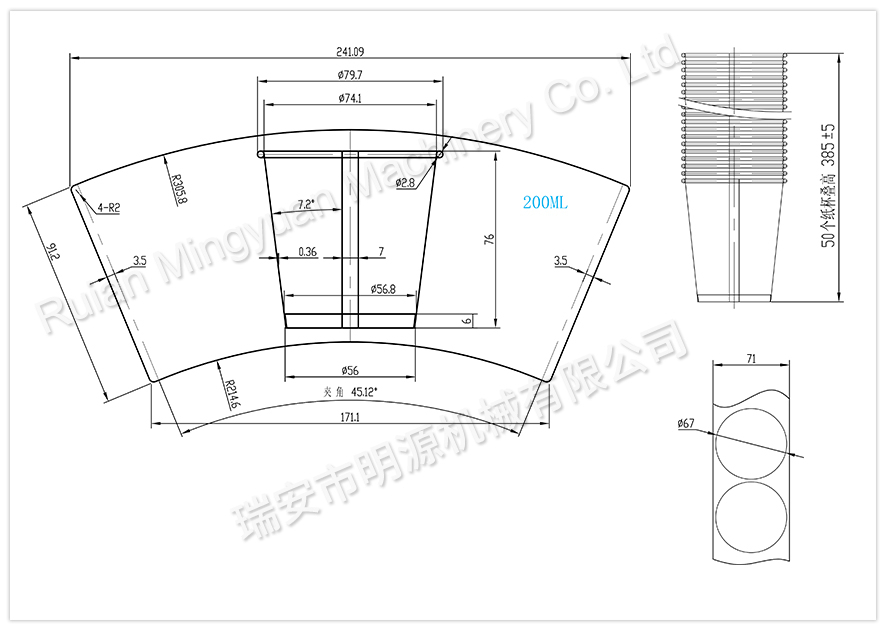

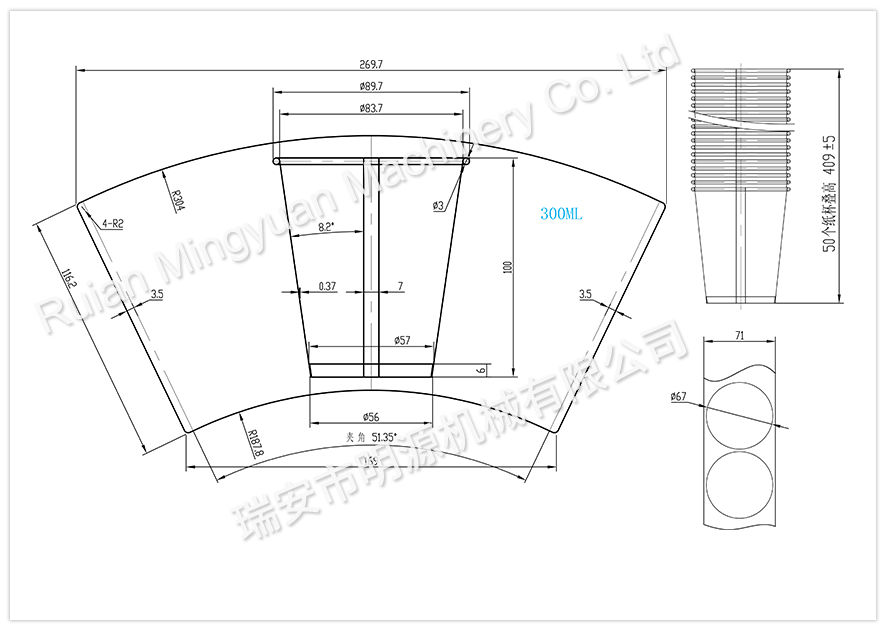

  1. So we make the design for the bottom as 56MM, 200ML and 250ML cup with 79.6MM top diameter to match with the 80MM plastic lid , 330ML and 350ML with 89.6MM top diameter to match 90MM lid .

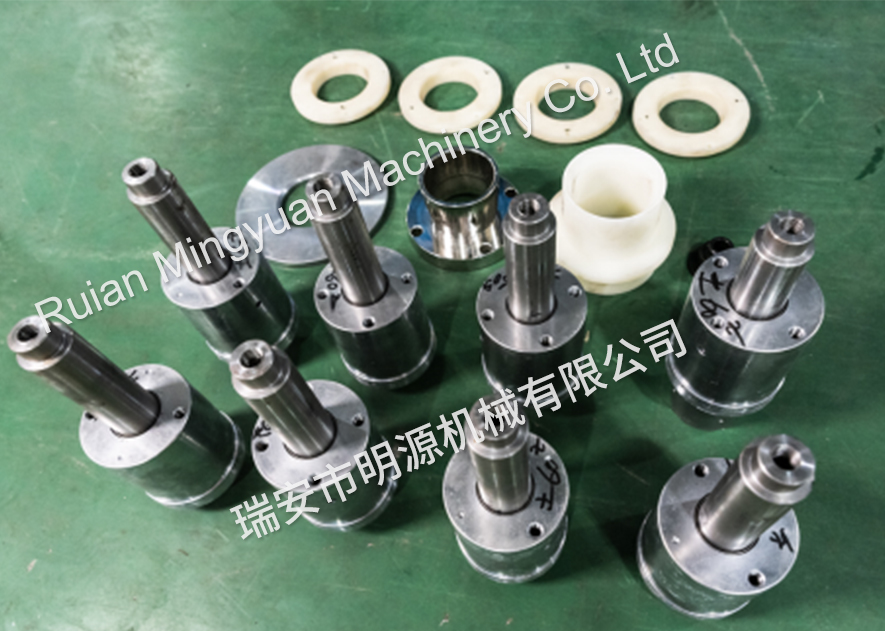

  2. 1 set OCM12 ultrasonic heater paper cup machine with 3 extra half set mould to make 4 different sizes of cups.
结果:

Outcomes:

  1. We help our client to design the suitable cup top diameter 80MM/90MM to match the popular lid in market.
  2. the finished cup with lid is without leakage troubles
